JE PISTONS
Piston Kit - 92.00 mm - 9.0:1 CR - Honda
Part # 0910-6524
$774.99
Earn store credit on this purchase
Low Stock (3)
- 60-day returns
- Free shipping over $100
- Secure checkout
Confirmed fit for 9 motorcycle configurations across Honda, model years 2019–2022.
| Years | Make & Model |
|---|---|
| 2019-2022 | Honda SXS10S2X Talon 1000X |
| 2019-2022 | Honda SXS10S2R Talon 1000R |
| 2021 | Honda SXS1000M3 Pioneer 1000 |
- Aligned Grain Flow Technology - In-house forging has allowed JE to develop proprietary forging technology that directs the grain flow of the aluminum to flow around critical areas of the piston, increasing strength
- Lateral gas ports channel combustion gases to the back of the top ring groove adding pressure behind the compression ring to keep it pushed against the cylinder, providing improved and more consistent ring seal, critical in boosted applications
- Ultra-thick ring lands aid in maintaining ring stability in forced induction and high-horsepower N/A engines, contributing to consistent ring seal and consistent power
- Thermal barrier crown ceramic coating on the piston crown greatly reduces heat transfer into the piston material, decreasing fatigue and improving longevity
- Proprietary, moly-based dry film skirt coating is applied in-house and reduces operating friction for better wear resistance
- Accumulator groove provides additional volume to trap unwanted gases below the top ring to keep pressure low and ring seal and performance high
- Two oil channels fed into the pin bore maintain proper lubrication to improve wrist pin and pin bore wear resistance

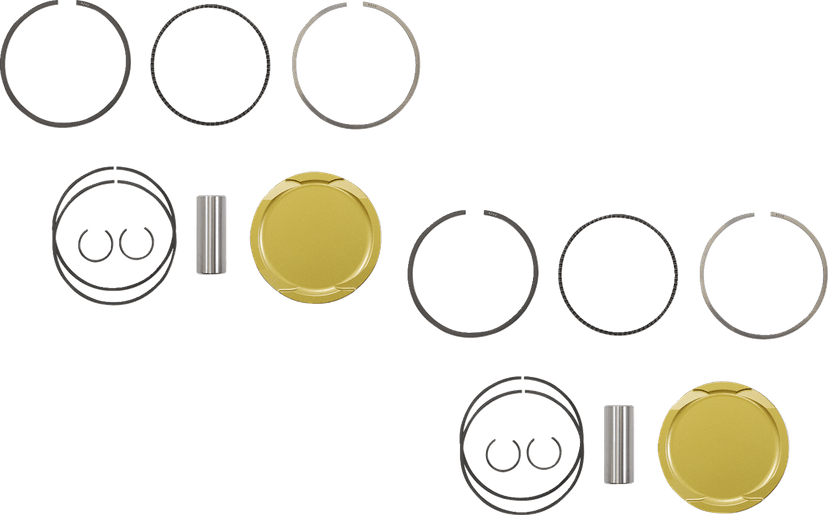

- Complete kit includes all necessary pistons, rings, wrist pins, and wire locks under one part number
- Upgraded 9310 wrist pins are stronger and thicker, designed to withstand additional loads of forced
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The JE PISTONS 0910-6524: Piston Kit - 92.00 mm - 9.0:1 CR - Honda. Confirmed fit for 9 motorcycle configurations across Honda, model years 2019–2022. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
