FEULING OIL PUMP CORP.
Part # 09251623
Price Not Available
Low Stock (6)
- 60-day returns
- Free shipping over $100
- Secure checkout
CARB Compliance: B — Not legal for sale in California
Confirmed fit for 52 motorcycle configurations across Harley-Davidson, model years 2017–2025.
| Years | Make & Model |
|---|---|
| 2024-2025 Harley-Davidson | Road Glide Police FLTRXP |
| 2017-2024 Harley-Davidson | FLHTK Ultra Limited |
| 2017-2019 Harley-Davidson | FLHTKL Ultra Limited Low |
| 2017-2021 Harley-Davidson | FLHTKSE CVO Limited |
| 2017-2022 Harley-Davidson | FLHXSE CVO Street Glide |
| 2022 Harley-Davidson | FLTRKSE CVO Road Glide Limited |
| 2023-2025 Harley-Davidson | FLTRX Road Glide |
| 2018-2022 Harley-Davidson | FLTRXSE CVO Road Glide |
| 2024-2025 Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2017-2019 Harley-Davidson | FLTRU Road Glide Ultra |
| 2017-2025 Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2020-2022 Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2025 Harley-Davidson | Road Glide Custom FLTRX |
| 2025 Harley-Davidson | FLTRXRRSE CVO Road Glide RR |

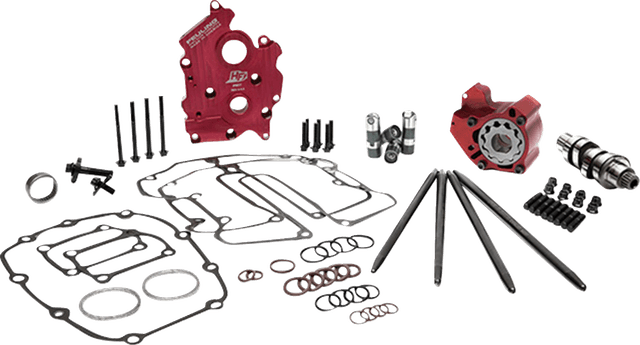

- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft.
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- 38° overlap
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Short Travel Lifters
- Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
- Designed with 0.115 of total travel
- One Piece Pushrod
- HP+ 0.165 wall, +0.040 longer
- Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The FEULING OIL PUMP CORP. 09251623 is available at Greasemoto. Confirmed fit for 52 motorcycle configurations across Harley-Davidson, model years 2017–2025. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
