FEULING OIL PUMP CORP.

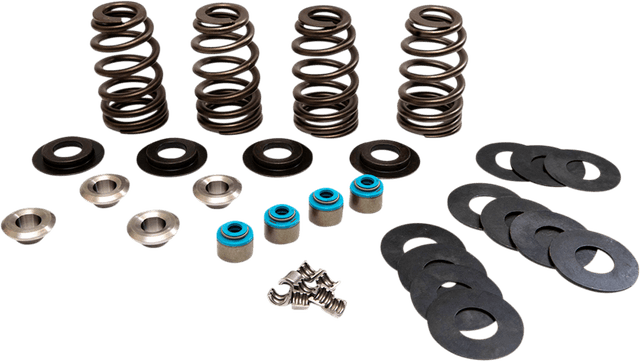

Valve Spring Kit - TI Retainers - For 7.00 mm Valve Stem - Twin Cam
Part # 0926-3323
$309.95
Low Stock (3)
- 60-day returns
- Free shipping over $100
- Secure checkout
CA Prop 65 Warning: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Confirmed fit for 133 motorcycle configurations across Harley-Davidson, model years 2004–2020.
| Years | Make & Model |
|---|---|
| 2004-2019 Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2009-2020 Harley-Davidson | XL883N Iron 883 |
| 2011-2019 Harley-Davidson | XL883L SuperLow |
| 2004-2009 Harley-Davidson | XL883C Sportster 883 Custom |
| 2006-2011 Harley-Davidson | XL1200L Sportster 1200 Low |
| 2005-2010 Harley-Davidson | XL883L Sportster 883 Low |
| 2012-2016 Harley-Davidson XL1200V Seventy-Two | |
| 2016-2020 Harley-Davidson | XL1200CX Roadster |
| 2004-2008 Harley-Davidson | XL883 Sportster |
| 2011-2017 Harley-Davidson | 1200 XLCP |
| 2004-2009 Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2010-2020 Harley-Davidson XL1200X Forty-Eight | |
| 2007-2012 Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2005-2007 Harley-Davidson | XL883R Sportster 883 Roadster |
| 2018-2020 Harley-Davidson | XL1200NS Iron 1200 |
| 2007 Harley-Davidson | XL50 50th Anniversary Sportster |
| 2004-2006 Harley-Davidson | 883 Custom EFI XLC |
| 2004-2006 Harley-Davidson | 1200 Custom EFI XLC |
| 2006 Harley-Davidson | 883 Low EFI XLL |
| 2009 Harley-Davidson | 883 EFI XL |
| 2014-2017 Harley-Davidson | XL1200T SuperLow 1200T |
| 2018-2019 Harley-Davidson | XL1200XS Forty-Eight Special |
| 2005-2006 Harley-Davidson | 883 Roadster EFI XLR |
| 2011-2012 Harley-Davidson | Sportster 1200 XR |
| 2010-2012 Harley-Davidson | XR1200X |
| 2009 Harley-Davidson | Sportster 1200 X XR |
| 2006 Harley-Davidson | 1200 Roadster EFI XLR |
| 2006 Harley-Davidson | 1200 Low EFI XLL |
| 2010 Harley-Davidson | XR1200 |
| 2007 Harley-Davidson | 883 Roadster XLR |
- Made from heat treated chromoly conical ovate wire
- Hand measured and labeled specifically based on their coil bing / required open height
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Dyno proven and track tested
- Kit includes: Econo BeeHive® valve springs, lightweight 7° steel or titanium retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Up to 0.585" lift
- Seat lb / installed height:
- 183 lb @ 1.760" (0.510" lift)
- 175 lb @ 1.785" (0.535" lift)
- 172 lb @ 1.803" (0.553" lift)
- 165 lb @ 1.825" (0.574" lift)
- 163 lb @ 1.835" (0.585" lift)
- 380 lb @ 1.250" Open Height
- Coil Bind @ 1.180"
- Made in the USA
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
- Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The FEULING OIL PUMP CORP. 0926-3323: Valve Spring Kit - TI Retainers - For 7.00 mm Valve Stem - Twin Cam. Confirmed fit for 133 motorcycle configurations across Harley-Davidson, model years 2004–2020. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
