FEULING OIL PUMP CORP.

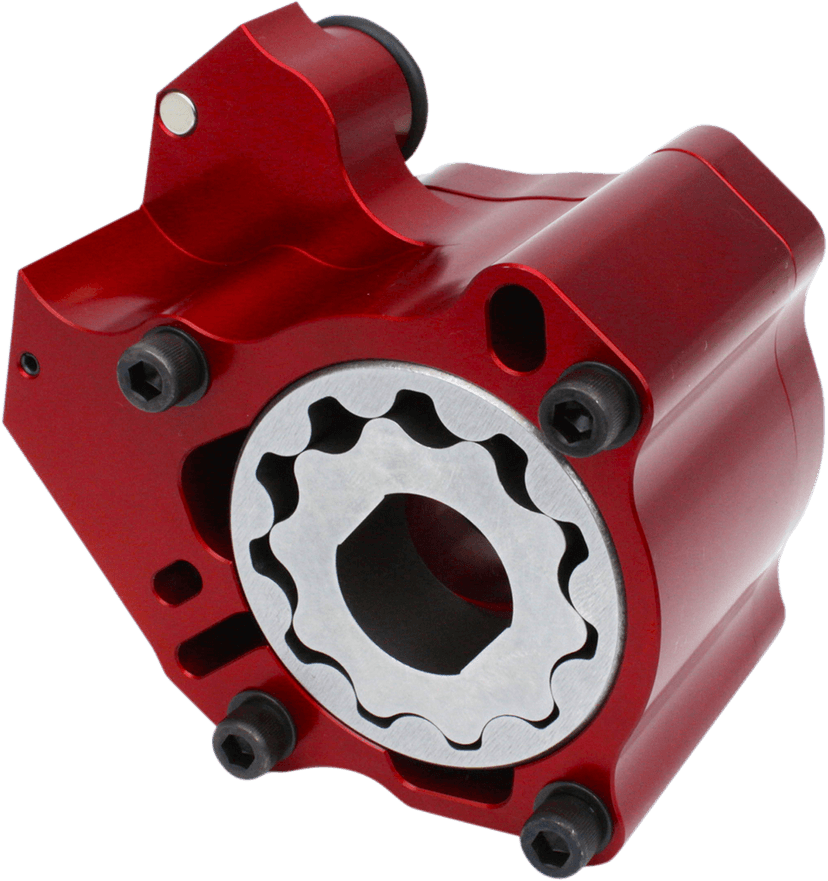

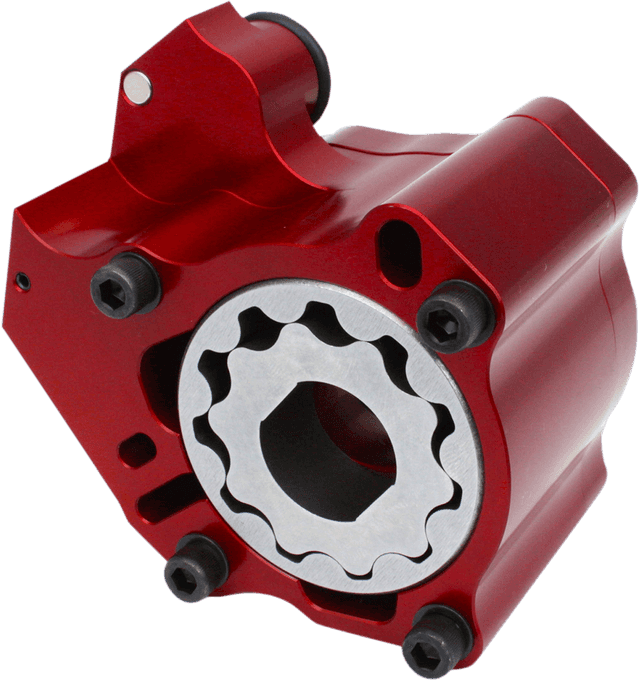

Race Series® Oil Pump - Oil Cooled Motors - '17-'26 M8
Part # 0932-0196
$519.95
In Stock
- 60-day returns
- Free shipping over $100
- Secure checkout
CA Prop 65 Warning: WARNING:
Confirmed fit for 210 motorcycle configurations across Harley-Davidson, model years 2017–2024.
| Years | Make & Model |
|---|---|
| 2020-2022 Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2017-2024 Harley-Davidson | FLHX Street Glide |
| 2018-2024 Harley-Davidson | FLHCS Heritage Classic 114 |
| 2017-2021 Harley-Davidson | FLHTKSE CVO Limited |
| 2023 Harley-Davidson | FLHFB Electra Glide Highway King |
| 2018-2021, 2023 Harley-Davidson | FXFBS Fat Bob 114 |
| 2017-2024 Harley-Davidson | Road King Police FLHP |
| 2021-2024 Harley-Davidson | FXBBS Street Bob 114 |
| 2017-2023 Harley-Davidson | FLTRXS Road Glide Special |
| 2018-2021 Harley-Davidson | FLSB Sport Glide 107 |
| 2017-2022 Harley-Davidson | FLHR Road King |
| 2017-2024 Harley-Davidson | FLHTK Ultra Limited |
| 2017-2024 Harley-Davidson | FLHRXS Road King Special |
| 2017-2024 Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2020-2024 Harley-Davidson | FXST Softail Standard 107 |
| 2018-2020 Harley-Davidson | FLDE Deluxe 107 |
| 2017-2024 Harley-Davidson | FLRT Freewheeler |
| 2017-2023 Harley-Davidson | FLHXS Street Glide Special |
| 2018-2020 Harley-Davidson | FXBRS Breakout 114 |
| 2018-2020 Harley-Davidson | FXBB Street Bob 107 |
| 2022-2024 Harley-Davidson | FXLRS Low Rider S 117 |
| 2017-2024 Harley-Davidson | FLTRX Road Glide |
| 2023-2024 Harley-Davidson | FXBR Breakout 117 |
| 2022-2023 Harley-Davidson | FLHXST Street Glide ST |
| 2022-2024 Harley-Davidson | FXLRST Low Rider ST 117 |
| 2020-2021 Harley-Davidson | FXLRS Low Rider S 114 |
| 2017-2019 Harley-Davidson | FLTRU Road Glide Ultra |
| 2017-2024 Harley-Davidson | FLHXSE CVO Street Glide |
| 2020-2024 Harley-Davidson | FLTRK Road Glide Limited |
| 2018-2024 Harley-Davidson | FLFBS Fat Boy 114 |
| 2018-2024 Harley-Davidson | FLTRXSE CVO Road Glide |
| 2024 Harley-Davidson | Road Glide Police FLTRXP |
| 2017-2019 Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2019-2020 Harley-Davidson | FXDRS FXDR 114 |
| 2018-2021 Harley-Davidson | FLHC Heritage Classic 107 |
| 2017-2024 Harley-Davidson | Electra Glide Police FLHTPI |
| 2018-2020 Harley-Davidson | FXLR Low Rider 107 |
| 2017-2019 Harley-Davidson | FLHTKL Ultra Limited Low |
| 2022-2023 Harley-Davidson | FLTRXST Road Glide ST |
| 2023-2024 Harley-Davidson | FLTRT Road Glide 3 |
| 2019-2022 Harley-Davidson | FLHT Electra Glide Standard |
| 2018-2019 Harley-Davidson | FLFB Fat Boy 107 |
| 2018-2021 Harley-Davidson | FLSL Softail Slim 107 |
| 2024 Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2022-2023 Harley-Davidson | FLTRKSE CVO Road Glide Limited |
| 2022 Harley-Davidson | FXRST Low Rider El Diablo 117 |
| 2024 Harley-Davidson | FLI Hydra-Glide Revival |
| 2022 Harley-Davidson | Softail Street Bob FXBB |
| 2018-2019 Harley-Davidson | FXBR Breakout 107 |
| 2018-2019 Harley-Davidson | FXFB Fat Bob 107 |
| 2021 Harley-Davidson | FLH Electra Glide Revival |
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- Eliminate common pressure and scavenge issues associated with the factory oiling system
- Precision-machined pressure relief valve and bore
- Each oil pump is bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
- FEULING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
- Requires use of the FEULING® High Flow cam plate, the combo increases oil flow in and out of the engine with corrected tolerances, oil passages and larger geroter gears
- Reduces engine and oil temperatures, increase oil pressure volume and scavenge volume on the return side to reduce build up of oil in the crankcase

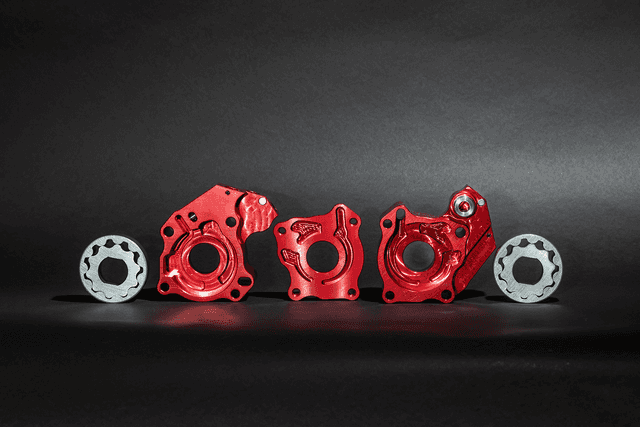

- High flow 2.250” Chrome Moly gerotor gears
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 68% more oil volume to the crankshaft and connecting rod bearing
- Magnets to help protect gears and pressure relief valve
- Testing shows increased HP and torque to the rear wheel
- M-Eight Twin-Cooled™ motors have 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
- M-Eight Oil-cooled™ motors have 27% more pressure and scavenge gear volume over stock
- Billet 7075 aluminum with red anodized; this material holds tighter tolerance under temperature, is 50% harder and stronger than 6061 aluminum
- Features increased scavenge side kidney port volume over HP+® oil pumps
- Increases oil pressure and scavenge volume
- Cooler oil and engine temperatures
- Made in the USA
- Increased and optimized passages, portholes and galleys requiring them to be matched up to a FEULING® High Flow cam plate PART #0932-0192.
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The FEULING OIL PUMP CORP. 0932-0196: Race Series® Oil Pump - Oil Cooled Motors - '17-'26 M8. Confirmed fit for 210 motorcycle configurations across Harley-Davidson, model years 2017–2024. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
