FEULING OIL PUMP CORP.

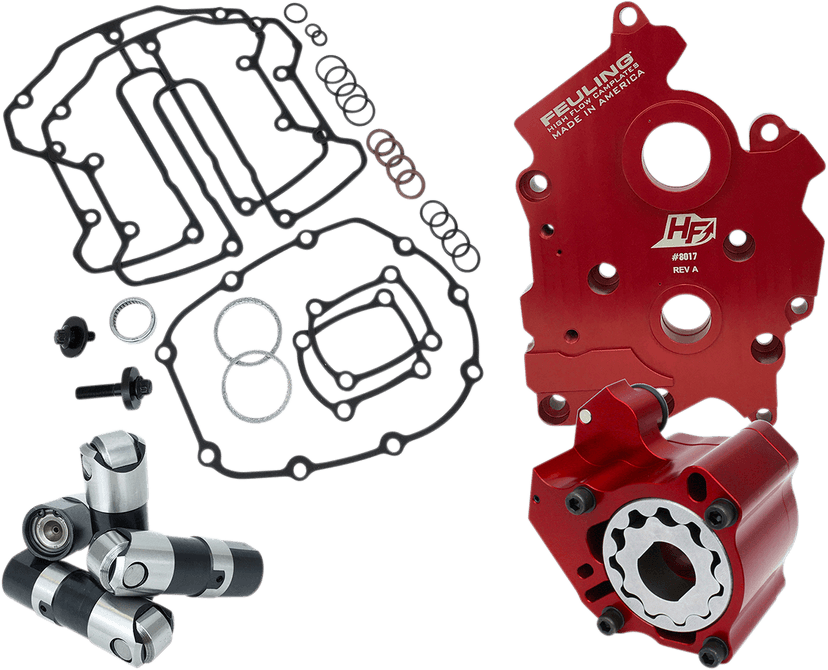

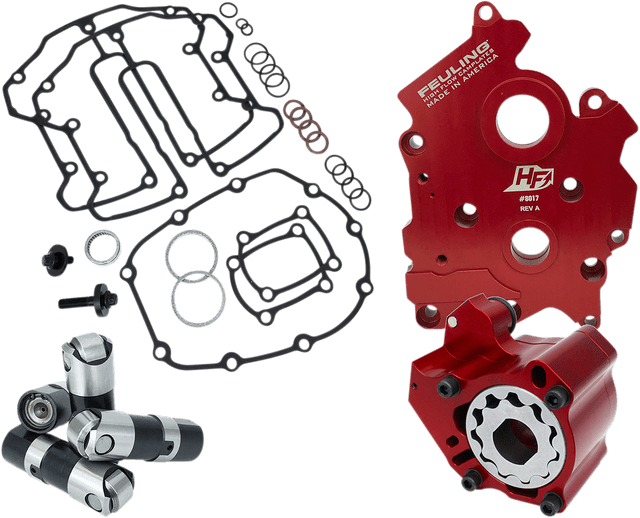

Race Series® Oil System Kit - Oil Cooled - M8
Part # 0932-0199
$1,229.95
In Stock
- 60-day returns
- Free shipping over $100
- Secure checkout
CA Prop 65 Warning: WARNING:
Confirmed fit for 210 motorcycle configurations across Harley-Davidson, model years 2017–2024.
| Years | Make & Model |
|---|---|
| 2020-2022 Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2017-2024 Harley-Davidson | FLHX Street Glide |
| 2018-2024 Harley-Davidson | FLHCS Heritage Classic 114 |
| 2017-2021 Harley-Davidson | FLHTKSE CVO Limited |
| 2023 Harley-Davidson | FLHFB Electra Glide Highway King |
| 2018-2021, 2023 Harley-Davidson | FXFBS Fat Bob 114 |
| 2017-2024 Harley-Davidson | Road King Police FLHP |
| 2021-2024 Harley-Davidson | FXBBS Street Bob 114 |
| 2017-2023 Harley-Davidson | FLTRXS Road Glide Special |
| 2018-2021 Harley-Davidson | FLSB Sport Glide 107 |
| 2017-2022 Harley-Davidson | FLHR Road King |
| 2017-2024 Harley-Davidson | FLHTK Ultra Limited |
| 2017-2024 Harley-Davidson | FLHRXS Road King Special |
| 2017-2024 Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2020-2024 Harley-Davidson | FXST Softail Standard 107 |
| 2018-2020 Harley-Davidson | FLDE Deluxe 107 |
| 2017-2024 Harley-Davidson | FLRT Freewheeler |
| 2017-2023 Harley-Davidson | FLHXS Street Glide Special |
| 2018-2020 Harley-Davidson | FXBRS Breakout 114 |
| 2018-2020 Harley-Davidson | FXBB Street Bob 107 |
| 2022-2024 Harley-Davidson | FXLRS Low Rider S 117 |
| 2017-2024 Harley-Davidson | FLTRX Road Glide |
| 2023-2024 Harley-Davidson | FXBR Breakout 117 |
| 2022-2023 Harley-Davidson | FLHXST Street Glide ST |
| 2022-2024 Harley-Davidson | FXLRST Low Rider ST 117 |
| 2020-2021 Harley-Davidson | FXLRS Low Rider S 114 |
| 2017-2019 Harley-Davidson | FLTRU Road Glide Ultra |
| 2017-2024 Harley-Davidson | FLHXSE CVO Street Glide |
| 2020-2024 Harley-Davidson | FLTRK Road Glide Limited |
| 2018-2024 Harley-Davidson | FLFBS Fat Boy 114 |
| 2018-2024 Harley-Davidson | FLTRXSE CVO Road Glide |
| 2024 Harley-Davidson | Road Glide Police FLTRXP |
| 2017-2019 Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2019-2020 Harley-Davidson | FXDRS FXDR 114 |
| 2018-2021 Harley-Davidson | FLHC Heritage Classic 107 |
| 2017-2024 Harley-Davidson | Electra Glide Police FLHTPI |
| 2018-2020 Harley-Davidson | FXLR Low Rider 107 |
| 2017-2019 Harley-Davidson | FLHTKL Ultra Limited Low |
| 2022-2023 Harley-Davidson | FLTRXST Road Glide ST |
| 2023-2024 Harley-Davidson | FLTRT Road Glide 3 |
| 2019-2022 Harley-Davidson | FLHT Electra Glide Standard |
| 2018-2019 Harley-Davidson | FLFB Fat Boy 107 |
| 2018-2021 Harley-Davidson | FLSL Softail Slim 107 |
| 2024 Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2022-2023 Harley-Davidson | FLTRKSE CVO Road Glide Limited |
| 2022 Harley-Davidson | FXRST Low Rider El Diablo 117 |
| 2024 Harley-Davidson | FLI Hydra-Glide Revival |
| 2022 Harley-Davidson | Softail Street Bob FXBB |
| 2018-2019 Harley-Davidson | FXBR Breakout 107 |
| 2018-2019 Harley-Davidson | FXFB Fat Bob 107 |
| 2021 Harley-Davidson | FLH Electra Glide Revival |
- Includes FUELING® High Flow billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or FUELING® OE+ camplates
- Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
- FUELING® oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- FUELING® oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems
- FUELING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
- Quieter and smoother engine operation
- Increase oil pressure, scavenge volume and engine oil flow
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 68% more oil volume to the crankshaft and connecting rod bearing
- Engine temperatures run 15°-25° cooler
- Oil temperatures run 15°-30° cooler
- 10-30 lbs more psi of oil pressure
- M-Eight Water-Cooled™ motor oil pump has 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
- M-Eight Oil-Cooled™ motor pump has 27% more pressure and scavenge gear volume over stock
- Eliminate wet sumping, blow by and oily air cleaners
- Test results show 2 horsepower gain and 2 ft./lb. of torque gain to the rear wheel on M-Eight
- Includes a Race Series® oil pump, Race Series® full-travel or short- travel hydraulic roller lifters, High Flow camplate and cam installation kit, cam bearing, cam/?crank bolts and washers, engine and fastener assembly lube
- Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
- Race Series® oil pumps feature increased scavenge side kidney port volume over HP+ oil pumps
- Race Series® full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
- Race Series® short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
- The travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
- Made in the USA
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The FEULING OIL PUMP CORP. 0932-0199: Race Series® Oil System Kit - Oil Cooled - M8. Confirmed fit for 210 motorcycle configurations across Harley-Davidson, model years 2017–2024. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
