LEGEND SUSPENSION

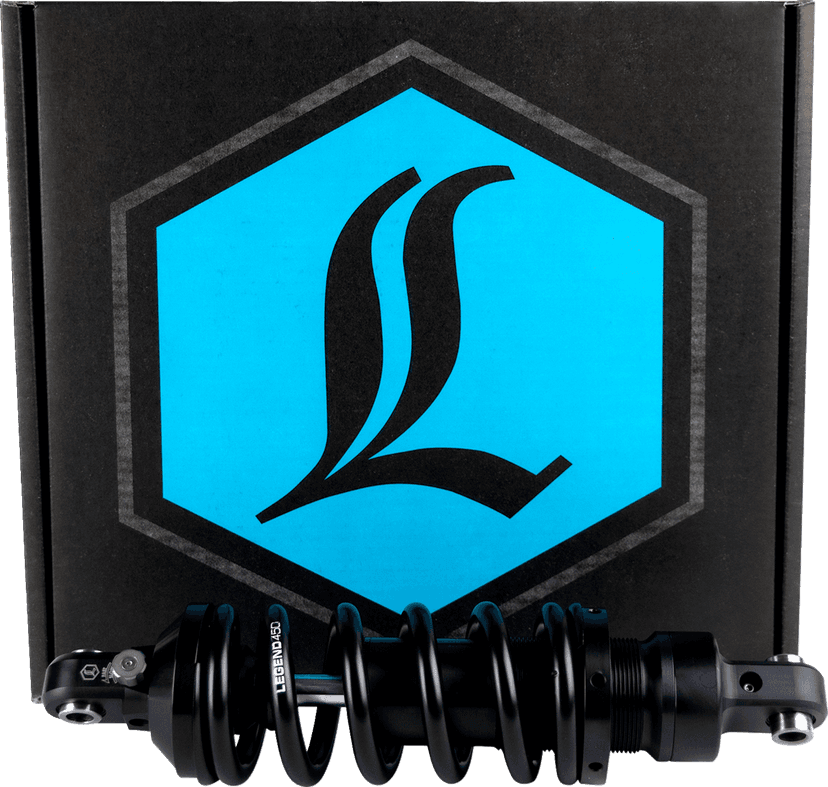

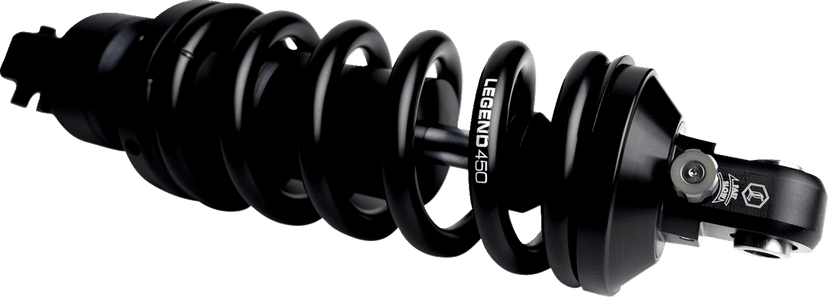

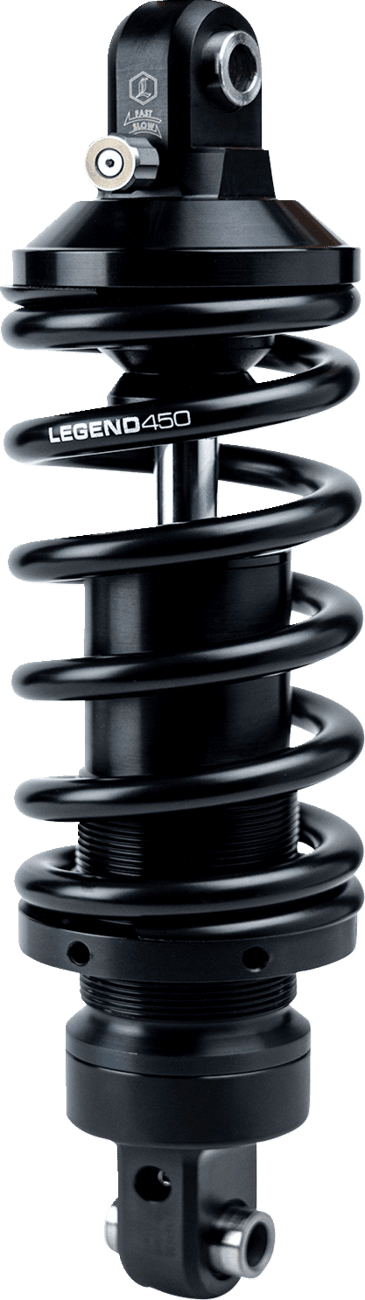

REVO-A Shock - 13.5" - Standard
Part # 1310-2315
$999.95
Earn store credit on this purchase
In Stock
- 60-day returns
- Free shipping over $100
- Secure checkout
Confirmed fit for 63 motorcycle configurations across Harley-Davidson, model years 2018–2024.
| Years | Make & Model |
|---|---|
| 2022-2024 | Harley-Davidson FXLRST Low Rider ST 117 |
| 2018-2024 | Harley-Davidson FLHCS Heritage Classic 114 |
| 2018-2021 | Harley-Davidson FLSL Softail Slim 107 |
| 2018-2020 | Harley-Davidson FXBB Street Bob 107 |
| 2018-2019 | Harley-Davidson FXFB Fat Bob 107 |
| 2018-2021, 2023 | Harley-Davidson FXFBS Fat Bob 114 |
| 2022-2024 | Harley-Davidson FXLRS Low Rider S 117 |
| 2020-2024 | Harley-Davidson FXST Softail Standard 107 |
| 2020-2021 | Harley-Davidson FXLRS Low Rider S 114 |
| 2018-2019 | Harley-Davidson FLFB Fat Boy 107 |
| 2018-2024 | Harley-Davidson FLFBS Fat Boy 114 |
| 2018-2019 | Harley-Davidson FXBR Breakout 107 |
| 2018-2020 | Harley-Davidson FXLR Low Rider 107 |
| 2022 | Harley-Davidson FXBBS Street Bob 114 |
| 2018-2020 | Harley-Davidson FLDE Deluxe 107 |
| 2018-2021 | Harley-Davidson FLHC Heritage Classic 107 |
| 2018-2021 | Harley-Davidson FLSB Sport Glide 107 |
| 2018-2020 | Harley-Davidson FXBRS Breakout 114 |
- All new Revo-A coil design for the M-Eight Softail
- Available in 12.5", 13", and 13.5", standard or heavy-duty applications
- Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
- Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
- Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
- Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
- Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
- Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
- Hard chromed shaft is 14% larger for increased strength
- High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
- Internal floating nitrogen piston ensures consistent damping performance
- Deflective disc valving self-adjusts to frequency and ensures controlled performance
- Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
- Available in Black Type III hard coat anodize
- Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
- Sold as Mono Shock (1 shock only)
- Preload wrench included
- Designed for optimum performance with the Legend Axeo front suspension
- Lifetime Warranty
- Made by hand in Sturgis, SD, USA
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The LEGEND SUSPENSION 1310-2315: REVO-A Shock - 13.5" - Standard. Confirmed fit for 63 motorcycle configurations across Harley-Davidson, model years 2018–2024. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
