JIMS

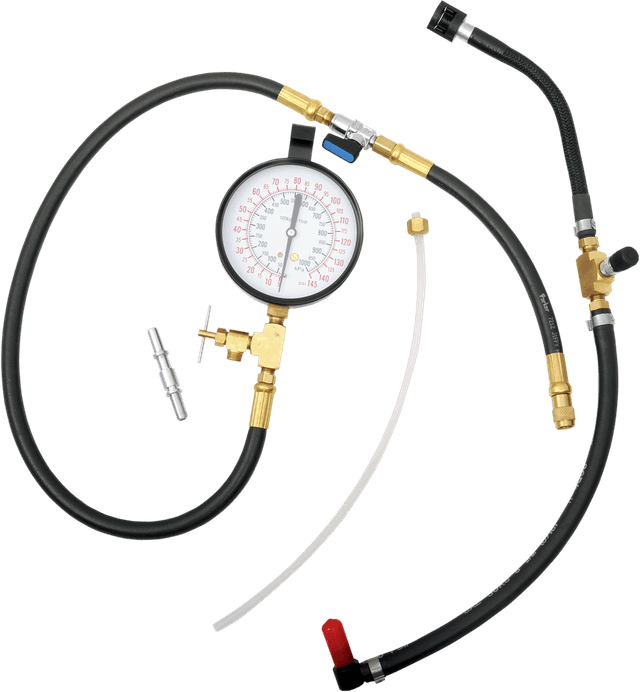

Diagnostic Tool - Fuel Pressure/Fuel Injection
Part # 3804-0007
$557.00
Earn store credit on this purchase
Low Stock (3)
- 60-day returns
- Free shipping over $100
- Secure checkout
Confirmed fit for 300 motorcycle configurations across Harley-Davidson, model years 2001–2017.
| Years | Make & Model |
|---|---|
| 2005 | Harley-Davidson 15th Anniversary Fat Boy FLSTF |
| 2015-2017 | Harley-Davidson FLHTK Ultra Limited |
| 2015-2017 | Harley-Davidson FLHTKL Ultra Limited Low |
| 2014-2017 | Harley-Davidson FLHXS Street Glide Special |
| 2015-2017 | Harley-Davidson FLTRXS Road Glide Special |
| 2010-2014 | Harley-Davidson FLHTK Electra Glide Ultra Limited |
| 2007-2017 | Harley-Davidson FLHR Road King |
| 2007-2017 | Harley-Davidson FLHTCU Electra Glide Ultra Classic |
| 2007-2017 | Harley-Davidson FLHX Street Glide |
| 2011-2013, 2016-2017 | Harley-Davidson FLTRU Road Glide Ultra |
| 2015, 2017 | Harley-Davidson FLTRX Road Glide |
| 2007-2010, 2016 | Harley-Davidson FLTR Road Glide |
| 2012-2016 | Harley-Davidson FLD Switchback |
| 2012-2017 | Harley-Davidson FLS Softail Slim |
| 2010-2016 | Harley-Davidson FLSTFB Fat Boy Lo |
| 2008-2017 | Harley-Davidson FXDF Fat Bob |
| 2004-2006 | Harley-Davidson FLHRSI Road King Custom |
| 2004-2005 | Harley-Davidson FXDXI Dyna Super Glide Sport |
| 2002-2006 | Harley-Davidson FLHRCI Road King Classic |
| 2001-2006 | Harley-Davidson FXSTDI Softail Deuce |
| 2002-2006 | Harley-Davidson FLHTCI Electra Glide Classic |
| 2001-2006 | Harley-Davidson FLSTCI Heritage Softail Classic |
| 2001-2003 | Harley-Davidson FLSTSI Heritage Springer |
| 2001-2006 | Harley-Davidson FXSTBI Night Train |
| 2001-2006 | Harley-Davidson FXSTSI Springer Softail |
| 2008-2009 | Harley-Davidson FXCW Rocker |
| 2008-2010 | Harley-Davidson FLSTSB Cross Bones |
| 2013-2017 | Harley-Davidson FXSB Breakout |
| 2002-2006 | Harley-Davidson FLTRI Road Glide |
| 2005-2006 | Harley-Davidson FLSTSCI Softail Springer Classic |
| 2005-2006 | Harley-Davidson FXDCI Super Glide Custom |
| 2008-2010 | Harley-Davidson FXCWC Rocker C |
| 2004-2006 | Harley-Davidson FXDI Dyna Super Glide |
| 2003-2006 | Harley-Davidson FLHTI Electra Glide Standard |
| 2016-2017 | Harley-Davidson FXDLS Low Rider S |
| 2016-2017 | Harley-Davidson FLSS Softail Slim S |
| 2007 | Harley-Davidson FLSTSC Softail Springer Classic |
| 2016-2017 | Harley-Davidson FLSTFBS Fat Boy S |
| 2006 | Harley-Davidson FLSTI Heritage Softail |
| 2006-2017 | Harley-Davidson FXDB Street Bob |
| 2006 | Harley-Davidson FXDI35 Dyna 35th Anniversary Super Glide |
| 2005-2006 | Harley-Davidson FLSTNI Softail Deluxe |
| 2007-2017 | Harley-Davidson FLSTC Heritage Softail Classic |
| 2007-2017 | Harley-Davidson FLSTF Fat Boy |
| 2007-2017 | Harley-Davidson FLSTN Softail Deluxe |
| 2007-2008, 2010-2017 | Harley-Davidson FXDWG Dyna Wide Glide |
| 2007-2013 | Harley-Davidson FLHTC Electra Glide Classic |
| 2007-2010 | Harley-Davidson FXD Dyna Super Glide |
| 2007-2014 | Harley-Davidson FXDC Super Glide Custom |
| 2007-2009 | Harley-Davidson FLHT Electra Glide Standard |
| 2007-2009 | Harley-Davidson FXDL Dyna Low Rider |
| 2007-2009 | Harley-Davidson FXSTB Night Train |
| 2007-2010 | Harley-Davidson FXSTC Softail Custom |
| 2007 | Harley-Davidson FXSTD Softail Deuce |
| 2002-2006 | Harley-Davidson FLSTFI Fat Boy |
| 2004-2006 | Harley-Davidson FXDWGI Dyna Wide Glide |
| 2001-2006 | Harley-Davidson FXSTI Softail Standard |
| 2015-2016 | Harley-Davidson FLHTCUL Electra Glide Ultra Classic Low |
| 2007 | Harley-Davidson FLHRS Road King Custom |
| 2007 | Harley-Davidson FXST Softail Standard |
| 2009-2017 | Harley-Davidson FLHTCUTG Tri Glide Ultra |
| 2015-2017 | Harley-Davidson FLRT Freewheeler |
| 2010-2011 | Harley-Davidson FLHXXX Street Glide Trike |
| 2011-2013 | Harley-Davidson FLTRX Road Glide Custom |
| 2015-2017 | Harley-Davidson FXDL Low Rider |
- Accurately diagnose causes of stalling, poor fuel economy, loss of power, hesitation, fuel pump-related problems inside the tank and more
- Fuel pressure test can be easily performed in about the time it takes to change a set of spark plugs
- Can be installed in line with the motorcycle's fuel supply system
- Can be used for road tests and during Dyno diagnostics/tuning
- Necessary diagnostic tool for all Delphi injected models
- Made in the USA
- Tool Includes:
- Large gauge assembly
- 8" hose
- 2' hose
- Fuel tank connection hose
- Throttle body connection hose
- Overflow hose
- T-fitting
- Valve assembly
- Ball valve
- Needle valve
- 08-09 depth adapter
- 1/4" tube sleeve
- #243 locktite
- Tool case
- Instruction sheet
- Not for '18-'20 Softails.
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The JIMS 3804-0007: Diagnostic Tool - Fuel Pressure/Fuel Injection. Confirmed fit for 300 motorcycle configurations across Harley-Davidson, model years 2001–2017. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
