JIMS

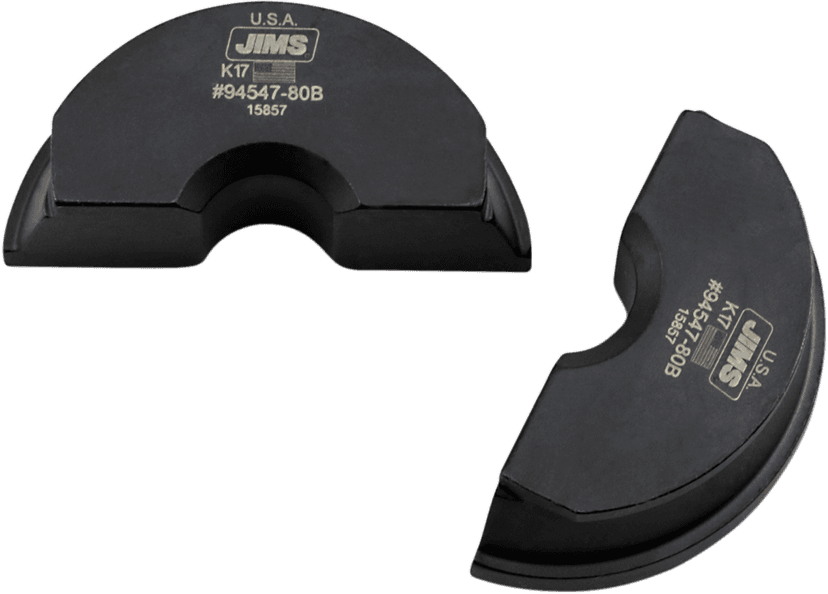

Sprocket Shaft Bearing Race Tool
Part # DS-196045
$120.65
Earn store credit on this purchase
Out of Stock
- 60-day returns
- Free shipping over $100
- Secure checkout
CA Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Confirmed fit for 114 motorcycle configurations across Harley-Davidson, model years 1977–2003.
| Years | Make & Model |
|---|---|
| 1987, 1989-2003 | Harley-Davidson Sportster 883 XLH |
| 1999-2003 | Harley-Davidson Sportster 1200 XLH |
| 1986-1995 | Harley-Davidson XLH883DLX Sportster 883 Deluxe |
| 1986-1987 | Harley-Davidson XLH1100 |
| 1987-1998, 2002-2003 | Harley-Davidson XLH883HUG Sportster 883 Hugger |
| 1988-1998 | Harley-Davidson XLH1200 |
| 1999-2003 | Harley-Davidson XL883C Sportster 883 Custom |
| 1996-2003 | Harley-Davidson XL1200S Sportster 1200 Sport |
| 2002-2003 | Harley-Davidson XL883R Sportster 883 Roadster |
| 1996-2003 | Harley-Davidson XL1200C Sportster 1200 Custom |
| 1986, 1988, 1999-2001 | Harley-Davidson XLH883 |
| 1979-1985 | Harley-Davidson XLS Roadster |
| 1977-1985 | Harley-Davidson XLH1000 |
| 1983-1985 | Harley-Davidson XLX 1000 |
| 1977-1979 | Harley-Davidson XLCH |
| 1977-1978 | Harley-Davidson XLT |
| 1977-1978 | Harley-Davidson XLCR Cafe Racer |
| 1983-1984 | Harley-Davidson XR1000 |
- Must use with JIMS® Race and Bearing Install Handle (PART# DS-196042)
- Used to remove and install Timken® bearing race on motor cases
- Made in the U.S.A.
Customer Reviews
No reviews yet — be the first to review this part.
Overview
The JIMS DS-196045: Sprocket Shaft Bearing Race Tool. Confirmed fit for 114 motorcycle configurations across Harley-Davidson, model years 1977–2003. Ships from Greasemoto — a veteran-owned motorcycle parts shop in Fort Worth, TX — with free U.S. shipping on orders over $100.
